Transformer insulation paper corrugate forming machine is dedicated equipment for forming transformer corrugated insulation paper plate.

1.Summary

1).YL-1 Transformer insulation paper corrugate forming machine .The suitable design and desirable shape with faster thermo-diffusion, power thrifty, convenient operating and running stable functions and characters so far win the one of the best reputation among a variety of dedicated equipment.

2) .YL -1 Transformer insulation paper corrugate forming machine is composed of drive and driven roller, slider, sliding seat, gear box, elect heater and frame body and it runs by the motor driving gear box and driven roller for feeding.

3) .The slider of YL -1 Transformer insulation paper corrugate forming machine is casted to size and up-down rollers machined by seamless steel pipe and the clearance between them adjustment is manually.

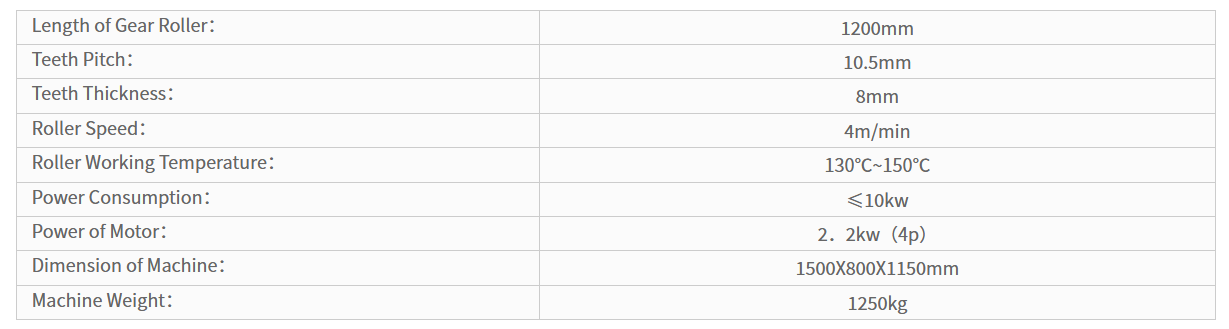

2.Main Technical Parameter
