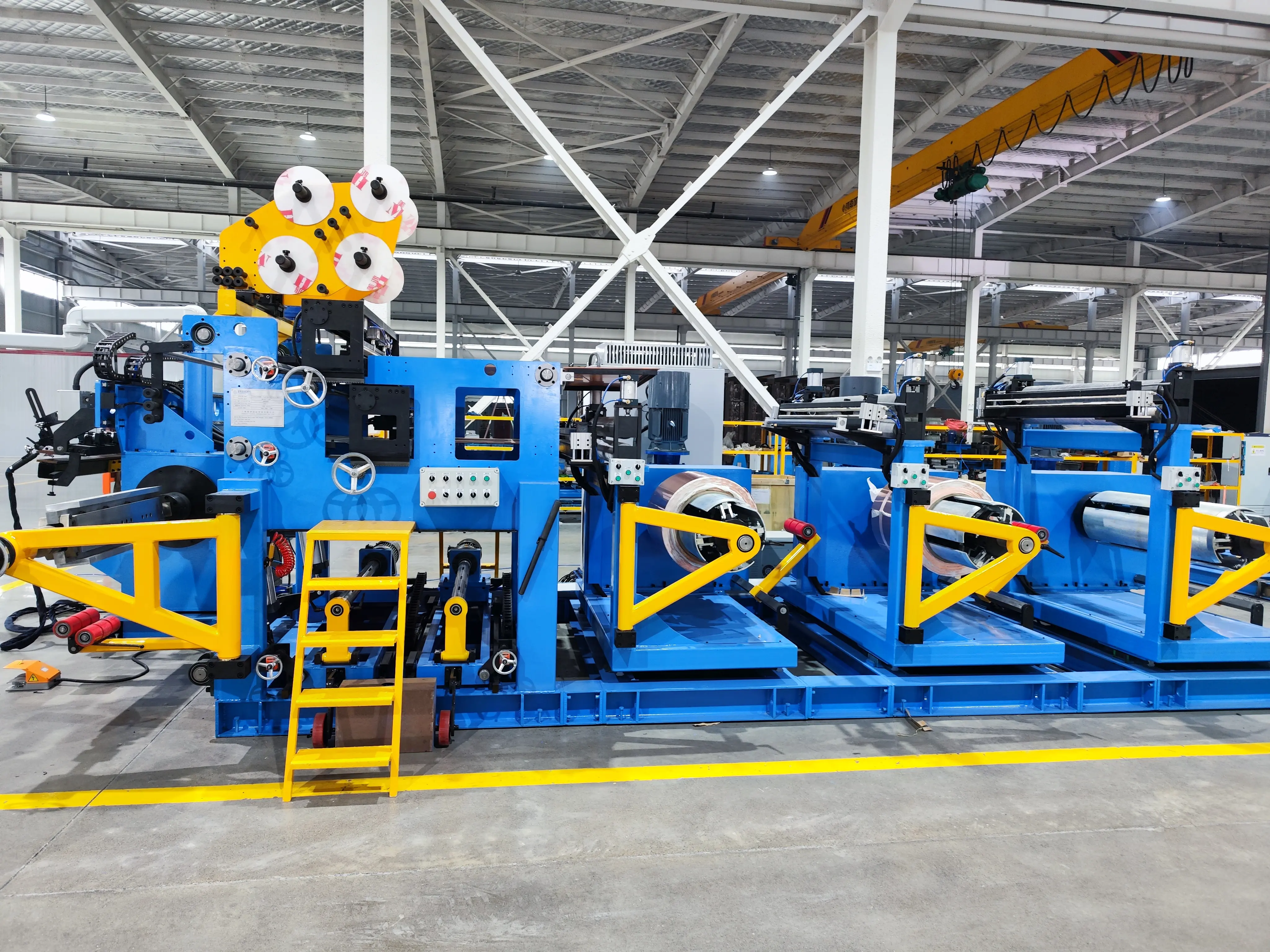

This foil winding machine is three layers foil winding machine, apply to amorphous transformer, oil-immersed transformer. Winding coil is foil belt. Coil shape can be round, cylindrical, oval, rectangle, etc.,
The equipment has complete functions and high production efficiency, the foil belt tension by electric control is convenient and reliable. The deviation(alignment) adjustment adopts servo control to be accurate, stable and reliable, ensuring the processing quality of the coil.

LV foil coil uses different thickness copper or aluminum foil as conductor, wide band type insulation material as layer insulation, complete winding in foil type winding machine, forming roll coil.

This equipment can also be applied to the similar coil winding of electrical industry.

The machine adopts PLC control method with the characteristics of high degree of automation.

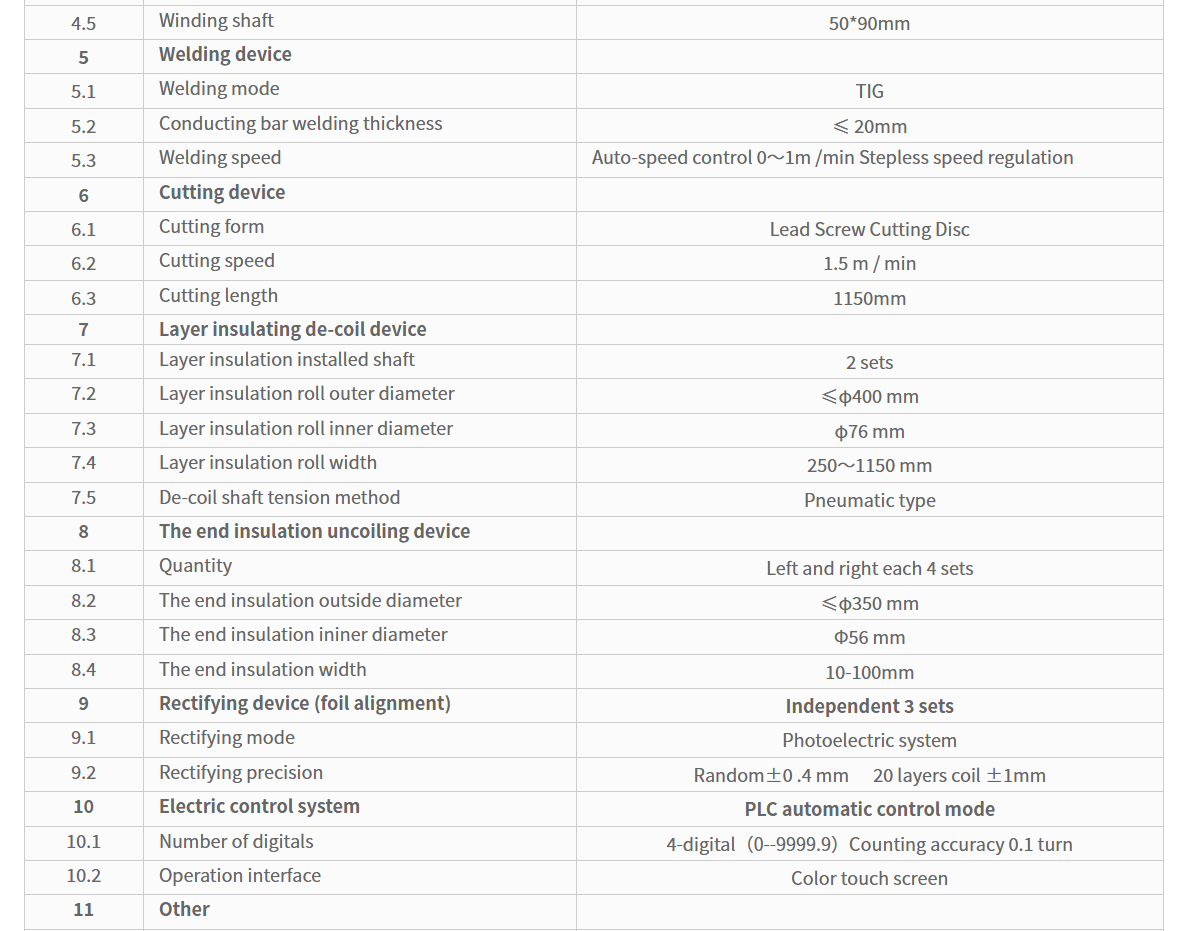

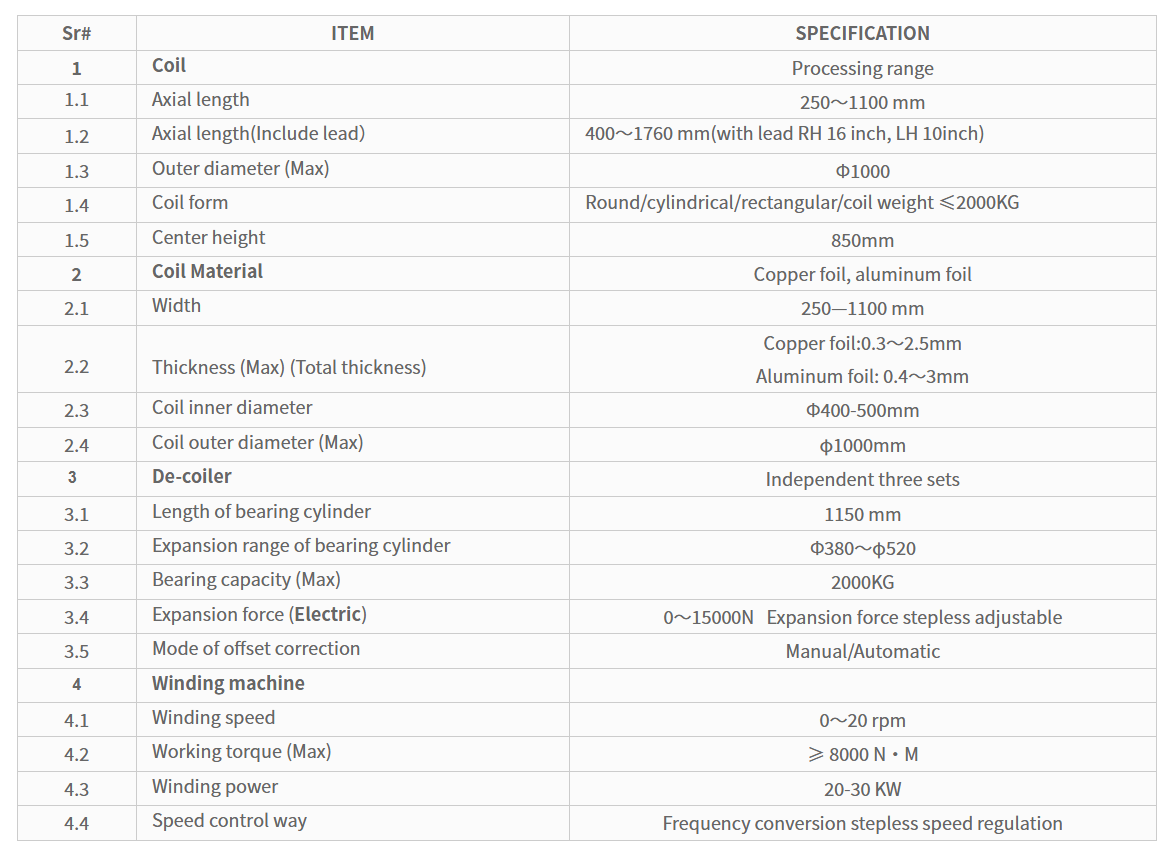

Parameters Of Transformer Coil High Voltage Layer Coil Winding Machine

Composition And Function Of The Equipment

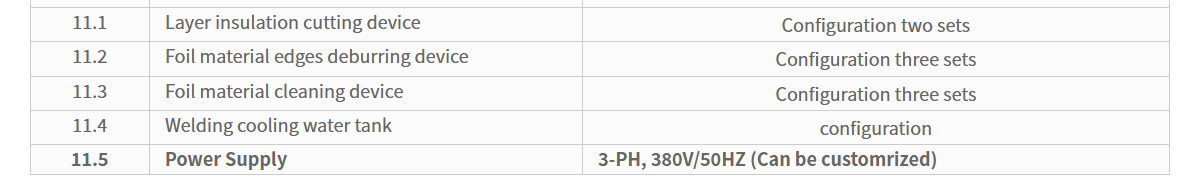

BR/III-1100 Three-Layer Foil Winding Machine include

Foil de-coiling device

Winding device

Layer insulation decoiling device

The main frame parts

Welding device

Deburring and cleaning device

Cutting device

The end insulation uncoiling device etc
