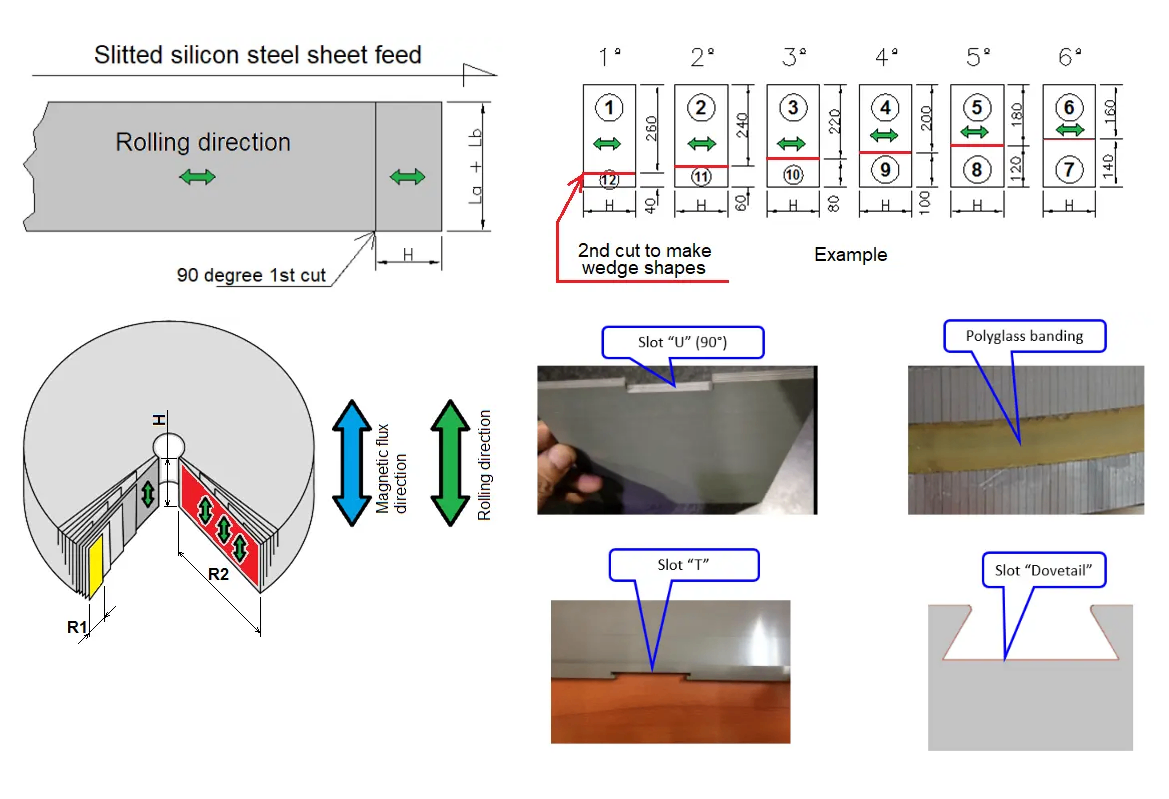

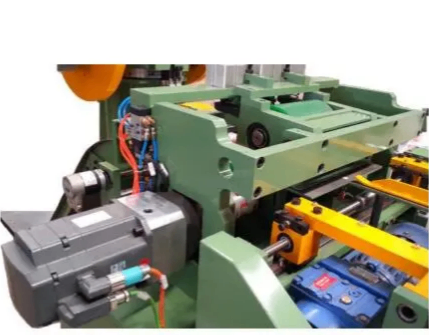

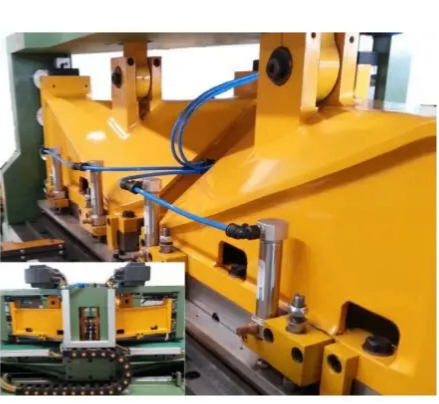

Reactor disk core cutting line is used for processing large and medium size reactor core wedge stack of the core device. The equipment can automatically complete the fixed length feeding, punching and shearing, chamfering, and classification and automatic stacking at both ends.
Technical Parameters of core stacking and tilting table
(1) Specification model: FT80T
(2) Maximum load bearing (T) : 80 (excluding iron yoke) for manufacturing: three-column core
(3) The maximum size of the core (excluding the size of the clip) can be manufactured:
(4) L * H (feng yoke upside down at the bottom of the iron yoke) x Φ column diameter (mm) :
6000 * 4000 * 1000 Φ
(5) Minimum distance (mm) from the center of the pillar: 600

1.Raw material to be processed on this cut to length machine
Material : Silicon Steel
Material Tolerance :±0.1mm
；
Material Burrs : ≤0.03mm
Material S Level : 0.1mm≤ 1000mm
Material Wave Level : ≤15 mm /1000mm
2.Process range of core cutting machine
Material Thickness : 0.18
～
0.35mm
；
Material Width : 100
～
600mm
；
Height of Core
（
H1
）：
60
～
400mm
；
Stepped size
：
0-600mm (customized
）
3.Cutting machine processing accuracy
Length Tolerance
：
±0.02mm/200mm
；
Angle Tolerance
：
±0.005°
；
Shearing Burr
：
≤0.02mm
（
1 million shearing /Grinding
）；
Punching Burr: ≤0.02mm
（
200 thousand punching /Grinding
）；
4.CNC cut to length line speed
：
Max feeding speed
：
200m/min
；
Effective Working Speed
：
120m/min
（
related with quality of raw material and shape of cutting
）；
Cutting Speed 25*2=50pc/min (Related to shape of the lamination)
